Flowers: Series V (P/57c era)
Updated Apr 20/11
Series I (50c era)
Series II (51c era)
Series III (52c era)
Series IV (52c era)


Coils (100 / 50):
Coil (5000):
Booklets:
Souvenir sheet:

Background

Initial release date: Jan 11/10

Designs (orchids):

  • P [Permanent(tm)] Striped Coralroot
  • $1.00 Giant Helleborine
  • $1.22 Rose Pogonia
  • $1.70 Grass Pink

Scott/Unitrade numbers:

  • 2357 (Permanent coil), 2361 (roll of 5,000)
  • 2356 (souvenir sheet)
  • 2358-2360 (coils)
  • 2362-2364 (booklet singles)
  • BK419-BK421 (booklets)

Printer: Lowe-Martin (Ottawa, ON)
Printing method: Lithography (5 colours)
Paper: self-adhesive, TRC

Designers: Monique Dufour, Sophie Lafortune

Postage rates (Jan 11/10-Jan 16/11):

  • P = 57c - domestic lettermail (0-30g)
  • $1.00 -USA (0-30g) and domestic (30-50g)
  • $1.22 -domestic non-standard (0-60g), domestic oversize (0-100g)
  • $1.70 - International (0-30g)

Format:

  • coil rolls of 50 ($1.00, $1.22 and $1.70) or 100 (P) with a 'gutter' every 10 stamps that contains an inscription. Gutters are collected in strips of 4 with 2 stamps on either side of the gutter. Single stamps are serpentine die cut (sawtooth tips) on the top and bottom.

    It is known that the coils are printed with 10 rolls across the printing sleeve.



  • the Permanent stamp was also released in very large rolls for commercial users (rolls of 5,000)



  • booklet 'panels' of 6 ($1.00, $1.22 and $1.70). Single stamps are serpentine die cut (rounded tips) on the top and bottom.

Top

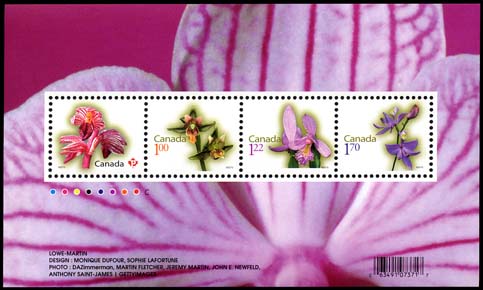

Souvenir Sheet

Top

Coils

Coil Checklist


  Self-adhesive Water-activated gum
  Coil Souvenir sheet
  Die cut 7.85 – 8.85
(9.35-9.60 in one row)
Die cut 7.90 – 9.25 Die cut 7.80– 8.70 Die cut 9.2 Die cut 9.2 Perf 13.4x13.1
  C paper C paper C paper Quarterly pack Roll of 5000 C paper
Domestic First-class rate:
P Striped Coralroot Jan 11/10 May 2010 Jul 2010 x Jan 11/10 Jan 11/10
USA rate:
$1.00 Giant Helleborine Jan 11/10 May 2010 Jul 2010 x   Jan 11/10
Domestic Non-standard and Oversize rate (0-100g):
$1.22 Rose Pogonia Jan 11/10 May 2010 Jul 2010 x   Jan 11/10
International rate:
$1.70 Grass pink Jan 11/10 May 2010   x   Jan 11/10

The date shown is the date of issue of that specific variety. A "blank" means the item does not exist.

Top


Coil Distribution

The coils were distributed to post offices in boxes, with 10 rolls per box. Self-adhesive labels were applied to one end of these boxes that contained several pieces of information:

  • quantity of rolls per box
  • Canada Post product number
  • printing roll number, date, and time
  • internal barcode and number
Permanent   $1.00

$1.22 $1.70

The rolls were wrapped around a thick inner core or cardboard. A clear, self-adhesive sticker was applied on the end of the roll to keep it rolled. This 'wrapper' had a UPC barcode which would be scanned at the post office checkout. Each wrapper was colour-coded to match the corresponding stamp.

Denomination UPC barcode on wrapper
P
$1.00
$1.22

$1.70

Top


Coil Serpentine Die Cutting

Three different die cutting patterns have appeared on these stamps (all are approximate or average measurements):

  • 7.85 – 8.85 (9.35 - 9.60 in one row) horizontally (all 4 values)
  • 7.90 – 9.25 horizontally (P, $1.00 and $1.22)
  • 7.80 – 8.70 horizontally (P, $1.00 and $1.22)

We say “approximately” because the serpentine die cutting is not consistent across the full printing press. In fact, even across a single stamp the peaks and valleys will vary both in depth and width. It is as if a piece of metal were made into an accordion and then stretched by hand with no apparent effort to precision.

Top


Coil - Rolls of 5,000

The Permanent coil was released in rolls of 5,000 stamps on January 11, 2010. The die cutting is a consistent 9.2 across the top and bottom of the stamp.

Due to the consistent, and different die cut gauge, these stamps are different compared to those from rolls of 100. They may prove to be difficult to find on commercial mailings used in period.

The stamps are rolled in a horizontal format (compared to vertical for the same design in rolls of 100 issued to post offices). There is a gap between the stamps and extra backing paper above and below the stamps. Illustrated below is a strip of 10, as received from the philatelic sales branch. These stamps could only be ordered in strips of 4 or 10; full rolls are only available to business clients.

There are no additional markings on the roll - either front or back.

Top

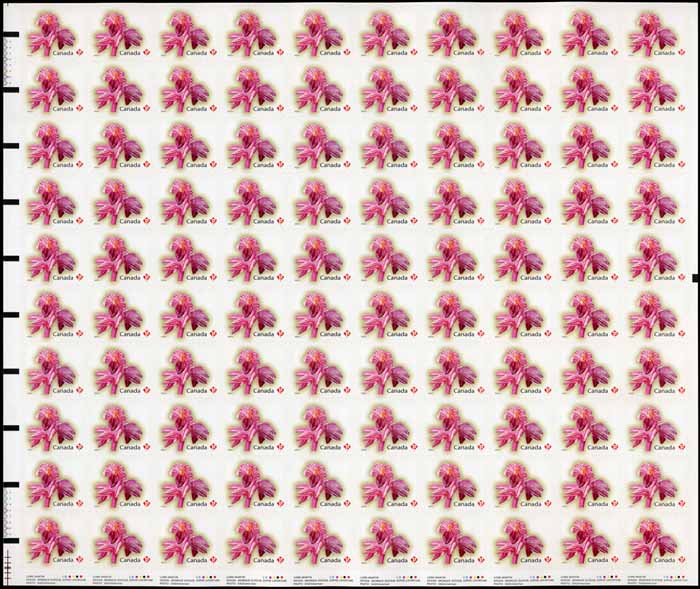

Uncut Press Panel of 100

The Permanent stamp was released in an uncut press panel of 100 stamps. This clearly shows the die cutting pattern across the 10 columns (before separating into rolls) of stamps.

Top


Booklets

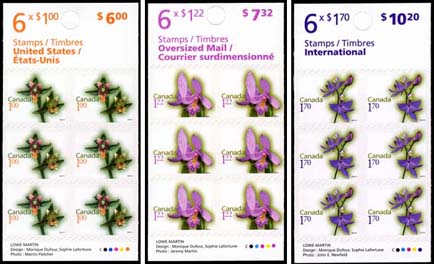

The $1.00, $1.22 and $1.70 designs were issued in booklet "panels" of 6 stamps.

Booklet Checklist


Booklet panes
  C paper

back cover:

Xpresspost
$1.00 Giant Helleborine Jan 11/10
$1.22 Rose Pogonia Jan 11/10
$1.70 Grass Pink Jan 11/10

Top

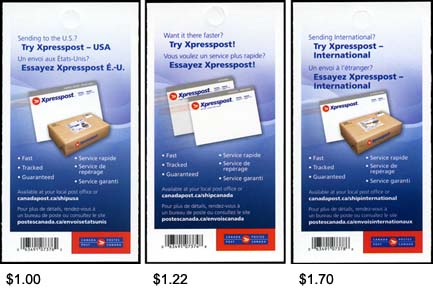

Booklet Cover

The original printings of these booklets advertised "Xpresspost", each denomination noting a different destination.
